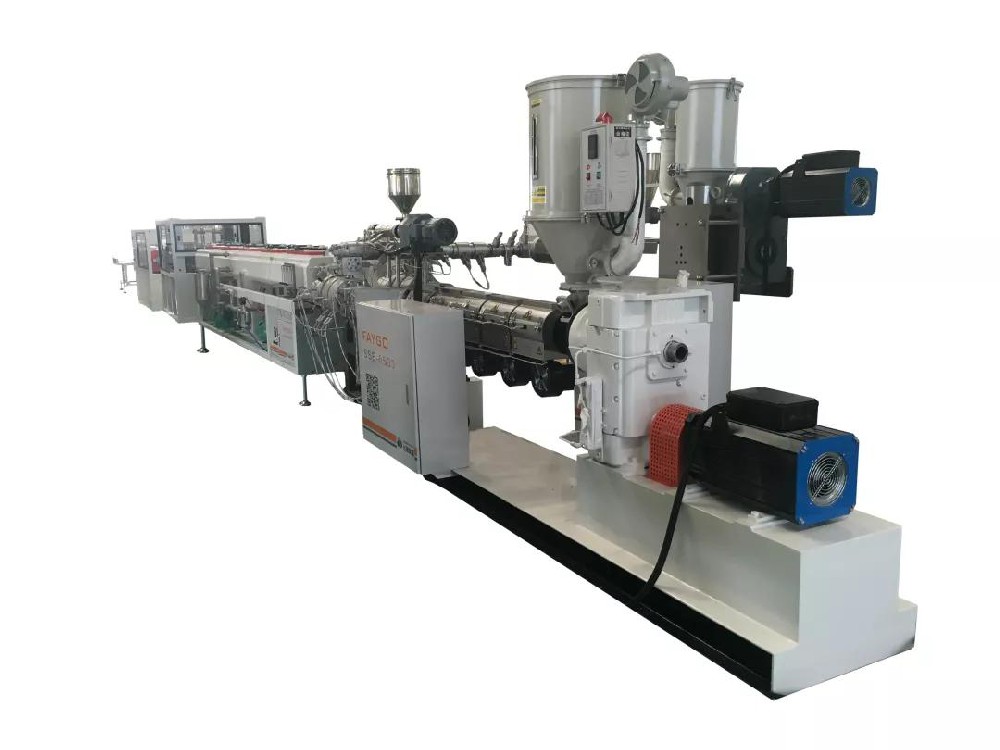

16-63mm PPR three-layer pipe one out two production line

　

Three-layer PPR one-out two-extrusion system-increasing production

 SSE65 / 33 extruded the middle layer, SSE55 / 33 extruded the inner and outer layers, all using 1:33 screw barrel, the color line is 25/25 extruder. When designing the screw, the engineer adjusts the screw structure according to the production materials so that it can increase the output by 15-20% compared with the screw of the ordinary design.

The whole line of intelligent control system.

 The entire line is controlled by PLC, and all auxiliary machine information is collected in the main electric cabinet, which is operated by a mobile control platform.  Through the mobile operating platform, you can monitor the entire production line and implement control.

 Energy saving and noise reduction

 Extrusion motors use permanent magnet synchronous motors. The energy consumption of this motor is 8% -10% energy saving compared with ordinary three-phase asynchronous motors, and the current noise generated is also better than ordinary motors.  And the price of this motor has not been greatly improved, which has really saved production costs for customers. Frequency conversion is used to control the vacuum pressure in the vacuum system of the vacuum box. It is convenient for parameter control of auxiliary machine. At the same time, the corresponding products can be digitally produced, which greatly reduces the airflow noise generated during vacuuming (the main noise source in production).

 See the truth in the ordinary-produce excellent machine, be excellent people.

 We have reduced some of the welding processes in important structures during the production and design of the extrusion line, and replaced it with an assembled structure of high-precision parts. In this way, the energy consumption of our equipment is reduced during the production process, and the loss of the transmission structure of the equipment is also reduced to increase the service life. Even if accidental replacement of parts occurs, it can be quickly replaced to reduce losses.

 Let each of our customers buy the most cost-effective equipment and get quality after-sales service!

 Basic parameters of production line:

 Product: 16-63PPR three-layer tube

 Extrusion structure: one out of two

 Extrusion output: SSE65 / 33-100KG / H

            SSE55 / 33-50KG / H

           SSE25 / 25 (standard) -3KG / H

 Production speed: 20 tubes -8M / min * 2

                            63 tubes -1.5M / min * 2
