Product Features:
With the best Diesel Engline has reasonably adjust the air delivery and power,wich can meet the requirements of heavy duty use and most harsh field application environment, and treatly reduce fuel consumption and the operation cost. Beautiful appearance, reliable performance and excellent economy.

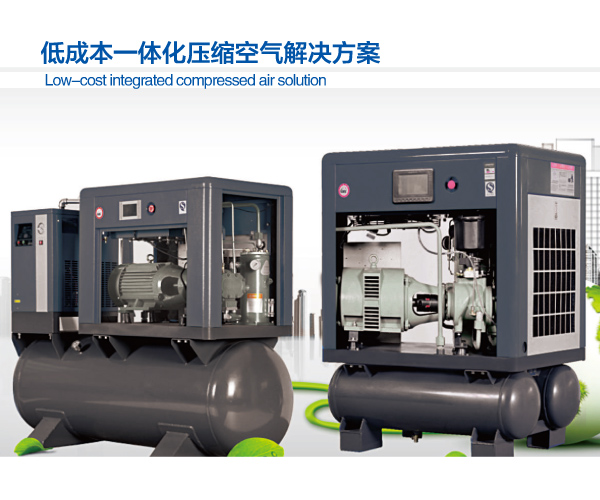

1. The combined screw air compressor that integrates the entire air system solution is not only an integrated compressed air system, but also a complete compressed air solution.
2. Long and reliable operating time, high productivity, flexible operation, low operating noise, high energy efficiency and cost savings.
3. The integrated design eliminates the use of internal pipes and joints.
4. Automatic start / stop control and constant speed running controller.
5. Easy-to-maintain direct drive, no need to replace wearing parts such as belts.
型号 Model | YD-10AT | YD-15AT | YD-20AT |
排气压力 (Mpa) Air pressure | 0.8 | 0.8 | 0.8 |
容积流量(FAD) (m³/min) Air delivery (FAD) | 1.05 | 1.52 | 2.3 |
机组输入功率 (Kw) Input power | 8.78 | 7.98 | 8.71 |
冷却方式 Type of cooling | 风冷 Air-cooling |
机组出口温度 (℃) Outlet temperature | 环境温度 Ambient temperature ±12℃ |
电机功率 (Kw) Power | 7.5 | 11 | 15 |
电机转速 (r/min) Speed | 1470 | 2900 | 2920 |
电源 (V/PH/Hz) Voltage | 380/3/50 | 380/3/50 | 380/3/50 |
电机启动方式 Starting method | 直接驱动 Direct Driven | Y-△启动 | Y-△启动 |
主电机绝缘等级 Insulation level | F | F | F |
主电机防护等级 Protection level | IP54 | IP23/IP54 | IP23/IP54 |
适应温度范围 (℃) Applicable temperatrue range | -5~+42℃ | -5~+45℃ | -5~+45℃ |
传动方式 Driven method | 直联驱动 Direct Driven |
噪音 (dB(A)) Noise level | 62±2 | 64±2 | 66±2 |
气体含油量 (ppm) Oil content | ≤3 | ≤3 | ≤3 |
冷却剂容量 (L/台) Coolant capacity | 4.5 | 9 | 9 |
储气罐 (L) Tank | 130 | 145 | 150 |
排气口尺寸 Outlet connection size | G½″ | G¾″ | G¾″ |
整机重量 (Kg) Weight | ≈275 | ≈450 | ≈480 |
整机外形尺寸 (mm) Dimension | 1000×700×1270 | 1050×750×1400 | 1050×750×1380 |
