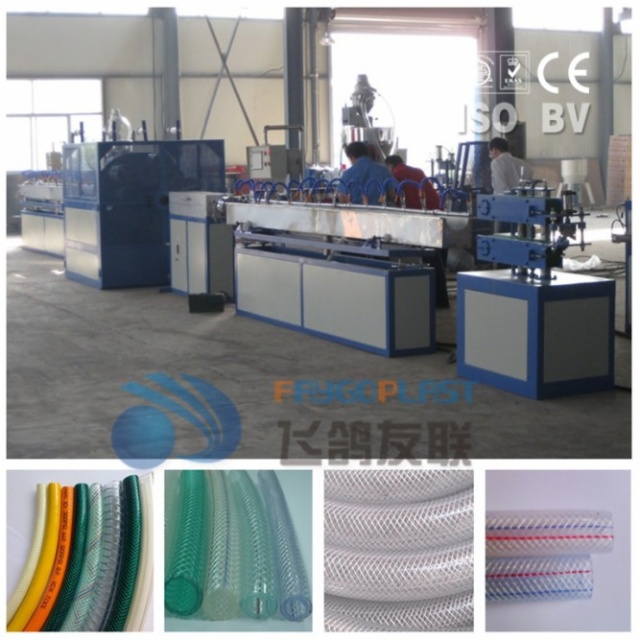

PVC Braided Hose Extrusion Line
This line is used to produce PVC fiber reinforced garden hoses with diameter from 8mm to 50mm. The hose wall is made of PVC material. In the middle of hose, there is fiber. According to request, it can make braided hose with different color, three layer braided hoses, five layer braided hoses.
The extruder adopts single screw with excellent plasticization; haul off machine has 2 claws with speed governed by ABB inverter; With proper the fiber layer could be crochet type and braided type.
The braided hose has the advantage of extrusion resistance, corrosion resistance, static electricity resistance, anti-high pressure and good running. It is suitable for the conveying high pressure or combustible gas and liquid, heavy suction and delivery of liquid sludge. It is mainly used in the garden and lawn irrigation.
This production line is used to produce PVC fiber reinforced garden hoses with a diameter of 8mm to 50mm. The hose wall is made of PVC material. There is fiber in the middle of the hose. According to requirements, we can produce braided hoses of different colors, three-layer braided hoses, and five-layer braided hoses.

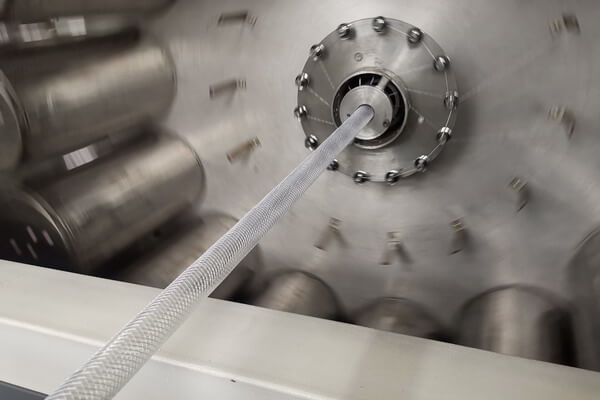

The production line consists of two single-screw extruders, molds, cooling water tanks, traction machines, weaving machines, and winders. The production process is that the extruder squeezes the inner layer, the water tank is cooled, the weaving machine, the extruder squeezes the outer layer, the water tank is cooled, the tractor, and the winder.
The extruder uses a single screw with excellent plasticizing performance. The tractor has 2 claws and its speed is controlled by an ABB frequency converter. Appropriately, the fiber layer can be crochet and knitted.
