FG series linear blowing-filling-capping combiblock is world first one model trying to give competitive solutions for small bottling factories.High-speed Blowing-filing-capping Combiblock combines the blowing system, filing system and capping system in one integrated system, reducing transmission, empty bottle handling, storage processes, which improved packaging hygienic condition and reducepackaging cross-contamination so as to improve the overall operating efficiency but lower the energy consumption, thereby reduce the overall production cost of enterprises.![1585267497205619.jpg HTB1OsMpKhWYBuNjy1zkq6xGGpXai.jpg](/static/upload/image/20200327/1585267497205619.jpg)
Machine parameters
Model
| FGF-4 | FGF-6 | FGF-8 |
Max volume(ml)
| 2000 | 2000 | 750 |
The maximum height(mm)
| 328 | 328
| 300 |
The max diagonal length(mm)
| 105 | 105
| 75 |
Diameter of the inner diameter(mm)
| 20-25 | 20-25 | 20-25 |
Maximum length of bottle billet(mm)
| 150 | 150 | 150 |
operation speed(BPH)
| 6500-7200 | 9000-10000 | 12000-13000 |
![1585267509384411.jpg H8bce3378f00b42238ac51ba8916f37b5l.jpg](/static/upload/image/20200327/1585267509384411.jpg)

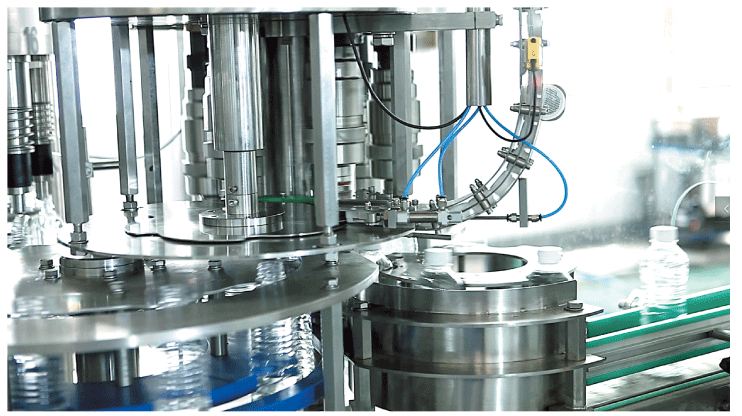

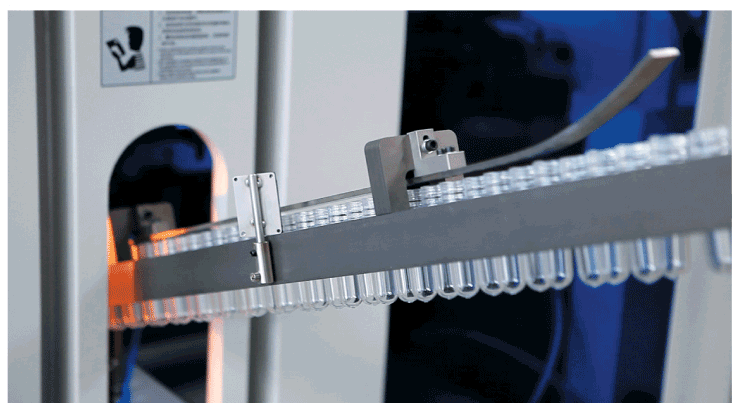

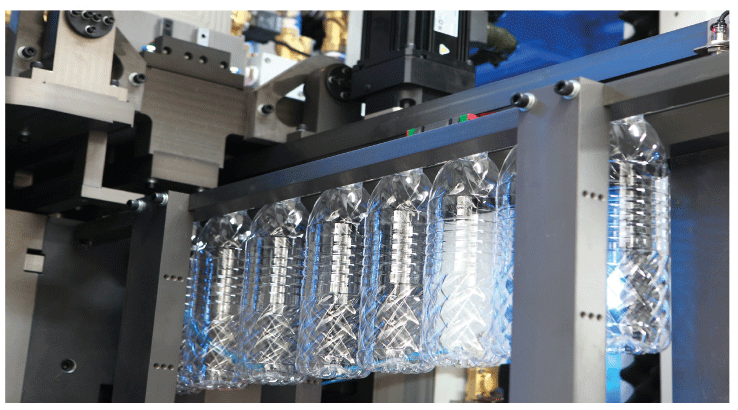

Detailed Images
![1585267591633875.png HTB1ssy4KXOWBuNjy0Fi760FxVXay.png](/static/upload/image/20200327/1585267591633875.png)
![1585267610191058.png HTB1B6AFl3ZC2uNjSZFn761xZpXaX.png](/static/upload/image/20200327/1585267610191058.png)
Advantages
1)blowing-filling-capping with one machine,simplify the production.
2)no need bottle rinse
3)no need long air conveyor
4)achieve savings on space,power and operator fees
![1585267637860522.png HTB1an8.KgmTBuNjy1Xb761MrVXa0.png](/static/upload/image/20200327/1585267637860522.png)
![1585267649243062.png HTB1GJS4KXOWBuNjy0Fi760FxVXaz.png](/static/upload/image/20200327/1585267649243062.png)
But we do more:
1)Economical solutions for middle and small bottling factories which looking for 6000-26000BPH.
2)0 waste,once filling machine stop,all preforms in heating can be stocked temporarily and be used next time.
Our Service
1,We will first have a thorough understanding of customer needs, then raise the professional suggestions.
2, Submit a design that meets customer needs.
3,We can provide photos, videos and other information to our customers to understand our products.
4,Welcome customers to our company inspection and negotiations.
Manufacturing stage
1,The company will regularly report to the customer on manufacturing progress.
2,After the manufacturing, the company on the machine for the overall test.
3,Notify the customer to our company to check the operation of the machine.
After-sales service
1,Engineers can overseas service, install machines and train workers.
2,Our company offers 12 months warranty.
3,The production line has any problems and we will handle it within 24 hours.
